BEAM030080-2RS/PE進口軸承
SKF BEAM030080-2RS/PE軸承,尺寸是內徑為:30mm,外徑為:80mm,厚度為:28mm,角接觸推力球軸承 for screw drives, double direction, for bolt mounting，此軸承型號本公司有現貨，獲取軸承內圈,外圈更多詳細資料您可致電我司，SKF BEAM030080-2RS/PE配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,BEAM030080-2RS/PE極限轉速,游隙,軸承的圖紙、樣品、價格或者替換產品等！我們是SKF軸承最佳代理商，所售產品均為原裝正品，請您放心購買！訂購電話：0512-62658883
BEAM030080-2RS/PE軸承 結構尺寸參數
| 角接觸推力球軸承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 軸和軸承座公差 | ||||||||||
|
||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | Attainable speed | 體積 | 型號 | |||||
| 動態 | 靜態 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 80 | 28 | 29,1 | 64 | 2,36 | 2600 | 0,78 | BEAM 030080-2RS/PE | BEAM 30/80/C SQP60 | |

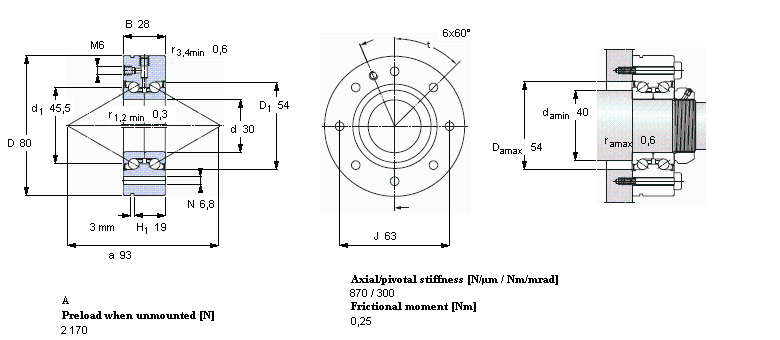

SKFBEAM030080-2RS/PE軸承 樣本圖紙
