71922ACD/HCP4A進口軸承
SKF 71922ACD/HCP4A軸承,尺寸是內徑為:110mm,外徑為:150mm,厚度為:20mm,角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid，此軸承型號本公司有現貨，獲取軸承內圈,外圈更多詳細資料您可致電我司，SKF 71922ACD/HCP4A配合安裝尺寸,基本尺寸,滾子粒數,71922ACD/HCP4A價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是SKF軸承最佳代理商，所售產品均為原裝正品，請您放心購買！訂購電話：0512-62658883
71922ACD/HCP4A軸承 結構尺寸參數
| 角接觸球軸承, 精密, ACD/HC, contact angle 25°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 110 | 150 | 20 | 58,5 | 68 | 2,55 | 8500 | 14000 | 0,72 | 71922 ACD/HCP4A | - | |

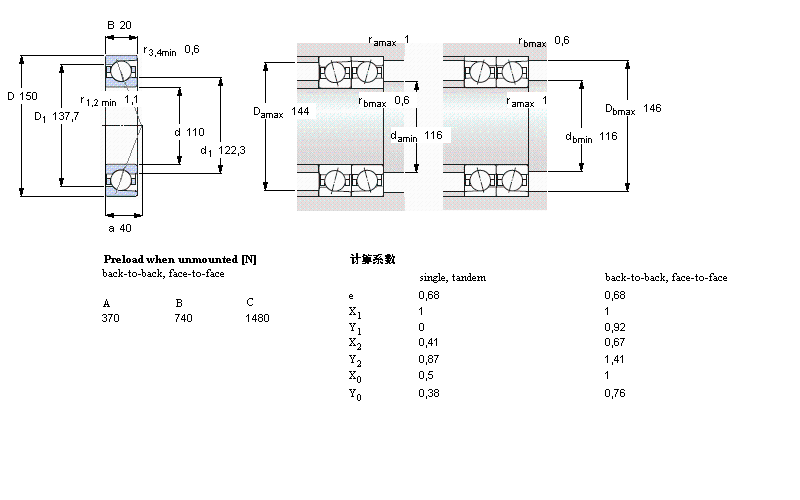

SKF71922ACD/HCP4A軸承 樣本圖紙
